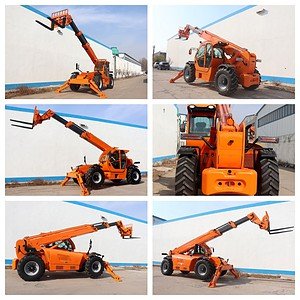

5 Ton Telehandler forklift. 14-Meter Reach. Factory Direct Pricing.
Let’s be honest. When you need to put 5 tons of material 14 meters in the air, your options have always been limited—and expensive.
You could rent a mobile crane. But that means scheduling, delivery fees, dedicated operators, and hourly charges that never stop. You could struggle with a smaller telehandler, making multiple unsafe lifts or leaving capacity on the table. Or you could invest in the HIXEN HX5014—the machine that finally brings genuine heavy-lifting capability to the telehandler world.
This is a Chariot élévateur télescopique de 5 tonnes that doesn’t know how to compromise. Full 5,000 kg capacity. Full 14-meter reach. One machine. One operator. Endless possibilities.
Cranes are powerful, but they come with baggage:
Cost: Hourly rates add up fast. A single project can cost as much as a new machine.
Logistics: Delivery, setup, coordination—every step takes time.
Access: Cranes need space. Tight job sites? Good luck.
Versatilité: A crane lifts. That’s it. No forklift functions. No attachments.
Maybe you try to make do with less:
Risk: Operating near or above rated capacity is dangerous.
Inefficiency: Multiple smaller lifts waste time and labor.
Wear: Consistently pushing a machine to its limits shortens its life.
Ce Chariot élévateur télescopique de 5 tonnes changes the game:
Lift 5 tons to 14 meters in a single operation.
Maneuver like a much smaller machine with 4WS and crab steer.
Transform with attachments for dozens of applications.
Own it outright with factory-direct pricing that beats rental fleets.
| Paramètre | T5014 |
| Max. capacité | 5000 kg |
| Max. hauteur de levage | 13.8m |
| Max. sensibilisation | 8.0m |
| Longueur totale jusqu'au chariot | 6.6 m |
| Longueur jusqu'à la face des fourches | 7.82 m |
| Taille minimale de transport | 6.3 m |
| Largeur hors tout | 2.35 m |
| Largeur de voie | 1.90 m |
| Hauteur hors tout | 2.65 m |
| Empattement | 3.6 m |
| Garde au sol | 0.38m |
| Largeur hors tout de la cabine | 00,84 m |
| Angle d'inclinaison | 12° |
| Angle d'inclinaison | 90° |
| Rayon de braquage extérieur (sur pneus) | 4.1 m |
| Poids à vide (avec fourches) | 13600kg |
| Type de pneus | Sans chambre à air |
| Pneus standard | 440/80-24 |
| Longueur / largeur / section des fourches | 1220 mm x 125 mm / 50 mm |

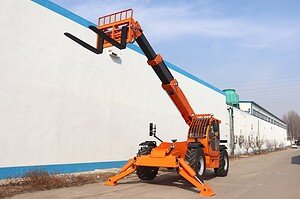

Boom That Means Business
The telescopic boom on this Chariot élévateur télescopique de 5 tonnes isn’t just longer—it’s stronger. High-strength steel with reinforced sections handles the stresses of 5-ton loads at full 14-meter extension. Less flex. More precision. Longer life.
Hydraulics That Deliver
Five tons needs serious flow and pressure. The HX5014’s upgraded hydraulic system provides smooth, controlled lifting throughout the boom’s range. No jerky movements. No hesitation. Just predictable power when you need it.
Stability You Can Trust
Height creates leverage. The HX5014 counters with a wide-stance, reinforced chassis and heavy-duty axles rated for 5-ton service. The low center of gravity keeps you planted, even on uneven ground.
Smart Safety Systems
An advanced load moment indicator monitors boom angle, extension, and actual load weight continuously. Operators get real-time feedback, ensuring every lift stays within safe parameters. When you operate a Chariot élévateur télescopique de 5 tonnes at 14 meters, this protection is non-negotiable.
