Extended Reach. Uncompromised Power. Direct from the Factory.
Height changes everything. When you need to place heavy materials on second-story structures, stack inventory to ceiling height, or reach over obstacles that block access, standard lifting equipment falls short. The HIXEN HX3510 solves this problem.

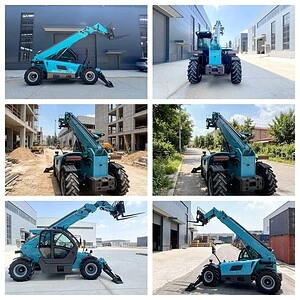

This machine delivers 3,500 kg (3.5 tons) of lifting capacity combined with a 10m telehandler—giving you the vertical reach to handle elevated tasks without sacrificing the power to lift substantial loads. Whether you are working on multi-story construction, high-density warehousing, or large-scale agricultural projects, the HX3510 extends your capabilities.
If your job site demands more vertical reach, this 10m telehandler deserves a closer look. And because HIXEN operates factory direct, you get this extended-reach performance without the extended dealer markups.
The jump from 7 meters to 10 meters opens new possibilities. Here is what that extra reach means for your operations:
Second-Story Construction: Place pallets of brick, block, and timber directly onto upper floors without crane support.
High-Bay Warehousing: Stack and retrieve inventory in facilities with elevated racking systems.
Infrastructure Projects: Reach over barriers, trenches, and excavations to place materials exactly where needed.
Large-Scale Agriculture: Load hay, feed, and supplies into elevated bins and silos.
A 10m telehandler bridges the gap between standard telehandlers and expensive mobile cranes—giving you lifting flexibility at a fraction of the cost.
| Capacities | T3510 |
| Max. capacity | 3500 kg |
| Max. lifting height | 10.0 m |
| Max. outreach | 6.1 m |
| Weight and dimensions | |
| Overall length to carriage | 11.1 |
| Length to face of forks | 5.8 m |
| Min transport size | 7.0 m |
| Overall width | 5.05 m |
| Track width | 2.2 m |
| Overall height | 1.78 m |
| Wheelbase | 2.55 m |
| Ground clearance | 3.15 m |
| Overall cab width | 0.84 m |
| Tilt-up angle | 12 ° |
| Tilt-down angle | 90 ° |
| External turning radius (over tyres) | 4.25 m |
| Unload weight (with fork) | 9500 kg |
| Tires type | Pneumatic |
| Standard tires | 16/70-20 |
Adding reach typically means compromising stability or capacity. The HX3510 rejects that trade-off through intelligent engineering.
1. Optimized Boom Geometry
The 10-meter boom on the HX3510 is not simply a longer version of a shorter boom. We redesigned the linkage geometry to maintain lifting performance throughout the entire extension range. You get consistent power whether the boom is fully retracted or fully extended.
2. Wide-Stance Chassis
Longer reach creates leverage that challenges stability. The HX3510 counters this with a reinforced, wide-stance chassis that keeps the center of gravity low and centered—even at maximum height. Outriggers are available for applications requiring maximum stability during precision lifts.
3. Load Management Intelligence
An integrated load moment indicator continuously monitors boom angle, extension, and load weight. Operators receive real-time feedback, ensuring every lift stays within safe parameters. This is especially critical when operating a 10m telehandler at full extension.
4. Multi-Mode Steering
Despite its reach, the HX3510 remains highly maneuverable. Three steering modes keep you productive in confined spaces:
Two-Wheel Steer: For stable transport between sites.
Four-Wheel Steer: Tight turning radius for navigating congested areas.
Crab Steer: Diagonal movement for precise load alignment against structures.
The HX3510 is designed for operators who need a 10m telehandler that performs reliably shift after shift, year after year.
Heavy-Duty Construction: The main frame and boom are fabricated from high-strength steel with robotic-welded seams for consistent quality and durability.
Proven Powertrain: A fuel-efficient engine mated to a smooth hydrostatic transmission delivers power to all four wheels, with differential locks ensuring traction on soft or uneven ground.
24-Hour Service Access: Daily maintenance points are accessible from ground level. No climbing, no contortion—just quick checks that keep you working.
Operator Comfort: The spacious cab features ergonomic controls, excellent sightlines to the boom tip and forks, and climate control options for extreme environments.
When you invest in a 10m telehandler, you need it to earn its keep every day. The HX3510 is built to do exactly that.
The standard HX3510 is a powerful machine. But your operation may have unique requirements. HIXEN offers comprehensive customization to tailor this 10m telehandler to your specific applications.
Attachment Options:
Construction: Block forks, concrete skips, truss booms, personnel baskets
Agriculture: Silage grabs, bale spikes, grain buckets, root crop forks
Industrial: Coil rams, drum handlers, log grapples, magnet lifters
Machine Customization:
Emissions Compliance: Engines configured for EPA, EU Stage V, or other regional standards
Cab Upgrades: Enhanced suspension seating, HVAC systems, visibility packages
Color & Branding: Custom paint matched to your company colors with logo application
Tell us what you need. If you can imagine it, we can build it.
