Unprecedented Height. Proven Power. Direct from the Factory.

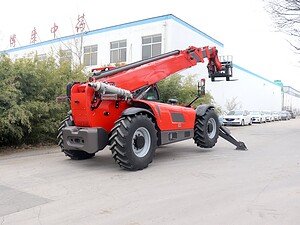

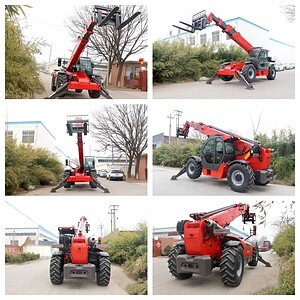

What happens when your project outgrows every telehandler on the market? You call HIXEN. The HX4018 represents the new frontier in material handling—a machine that delivers 4,000 kg (4 tons) of lifting capacity at a staggering 18 meters of reach.
This is not just a telehandler. It is a solution for projects that operate at heights others cannot touch. Five stories up. Six stories up. Major infrastructure. High-bay industrial facilities. When the work happens at 18 meters, the HX4018 brings the materials directly to the point of installation. No cranes. No complex rigging. No waiting.
If your job site reaches for the sky, an chariot télescopique 18m like the HX4018 changes everything. And because HIXEN is factory direct, this capability comes with pricing and support only the manufacturer can provide.
Eighteen meters changes the conversation. It means:
Five to Six Stories: Place materials directly onto the roof decks and floor plates of buildings five and six stories high.
Infrastructures majeures : Reach over highway barriers, railway lines, and construction zones to position heavy components exactly where they belong.
Échelle industrielle : Service the highest mezzanines, elevated equipment, and top-tier storage racks in massive facilities.
Bridge and Overpass: Handle formwork and materials at the heights required for modern bridge construction.
Un chariot télescopique 18m eliminates the gap between ground-level logistics and the highest work areas. It brings heavy lifting to where the work is happening—no matter how high that is.
Lifting 4 tons to 18 meters requires engineering excellence. The HX4018 delivers.
Multi-Stage Boom Mastery
The HX4018 features a sophisticated multi-stage boom engineered specifically for 18-meter reach. Each section is precision-fabricated from high-strength steel with optimized geometry. The boom moves smoothly and predictably, giving operators confidence at maximum height.
Hydraulique avancée
Reaching 18 meters demands hydraulic power delivered with precision. Proportional flow control maintains smooth, responsive movement regardless of load weight or extension distance.
Stability Engineering

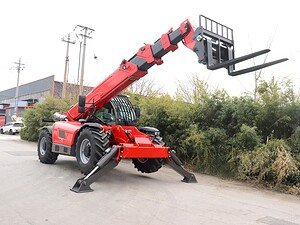

Height creates leverage. The HX4018 counters this with an exceptionally stable platform—wide stance, reinforced chassis, and optimized wheelbase for 18-meter operation. Outriggers available for maximum stability.
Intelligent Protection
An advanced load moment indicator continuously monitors boom angle, extension, and load weight. Real-time feedback ensures every lift stays safe. When you operate an chariot télescopique 18m, this intelligence is essential.
Despite its reach, the HX4018 remains maneuverable on the ground.
Three Steering Modes:
Two-Wheel Steer: Stable for travel between sites.
Quatre roues directrices : Tight turning for congested areas.
Bouvillon en crabe : Diagonal movement for precise positioning.
Terrain Ready: Full 4-wheel drive with differential locks ensures traction in mud, gravel, and loose soil.
Practical Dimensions: The machine fits through standard access routes. You don’t need to remove obstacles to get your chariot télescopique 18m to work.
Factory Direct: When you need an chariot télescopique 18m, you need answers from the source. Better pricing. Clearer communication. Faster support.
Quality Assured: Every HX4018 undergoes comprehensive testing—hydraulic pressure, boom cycles, steering calibration, safety systems.
Global Support: Extensive parts inventory ships worldwide quickly. Technical team supports your mechanics remotely.
| Paramètre | T4018 |
| Max. capacité | 4000kg |
| Max. hauteur de levage | 17.6 m |
| Max. sensibilisation | 12.8m |
| Longueur totale jusqu'au chariot | 6.4 m |
| Longueur jusqu'à la face des fourches | 7.62 m |
| Taille minimale de transport | 5.6 m |
| Largeur hors tout | 2.35 m |
| Largeur de voie | 1.95 m |
| Hauteur hors tout | 2,55 m |
| Empattement | 3.6 m |
| Garde au sol | 0.38m |
| Largeur hors tout de la cabine | 00,84 m |
| Angle d'inclinaison | 12° |
| Angle d'inclinaison | 90° |
| Rayon de braquage extérieur (sur pneus) | 4.1 m |
| Poids à vide (avec fourches) | 13600kg |
| Type de pneus | Sans chambre à air |
| Pneus standard | 440/80-24 |
| Longueur / largeur / section des fourches | 1220 mm x 125 mm / 50 mm |
Need detailed specs, load charts, or drawings? Just ask.
If your projects require lifting heavy materials to extreme heights, the HX4018 is your machine. Genuine 4-ton capacity at 18 meters—backed by factory-direct support.
Stop piecing together solutions. Get one machine that does it all.
Ce chariot télescopique 18m is available now for worldwide delivery. Contact HIXEN today with:
Your industry and applications
Preferred attachments or customizations
Delivery location
