Excavation projects are rife with hazards if you don’t take the proper precautions. Shielding excavation is essential for keeping everyone who is working in and around the excavation safe. Furthermore, shielding punctures the soil, reducing the possibility of trench collapse and getting soil on workers in the excavation.
Shielding excavation protects workers by preventing trench collapses. Key systems include trench boxes, hydraulic shoring, and slide rail systems, each suited for different excavation conditions. Choosing the right shielding ensures safety, compliance, and efficiency, while avoiding costly accidents. Discover which system fits your project needs to ensure a safe and successful excavation.
Now, let’s explore the types of shielding systems and how to choose the best one for your project.

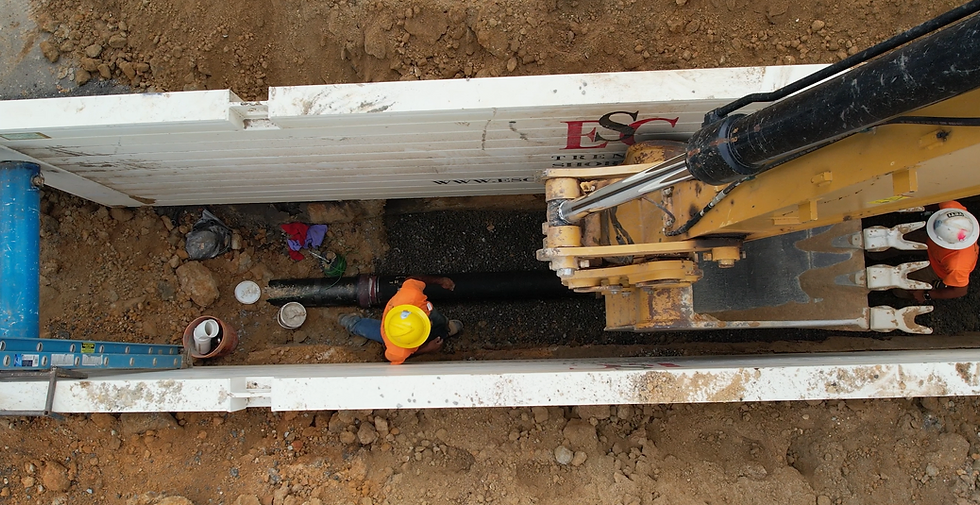

What is Shielding Excavation, and Why is it Important for Excavation Projects?
Use a physical barrier or system to prevent soil cave-ins during an excavation. Trenches are especially prone to cave-ins, especially when they are deep and the soil is loose. Use shielding to stabilize the trench and create a safe workspace for your machinery workers or employees laboring in the excavation site.
Without proper shielding, the consequences of a trench collapse can be fatal and almost always will result in injuries. Whenever a project calls for digging below ground level—whether for construction, utilities installation, or other purposes—the operation carries high risk. The purpose of shielding is to prevent the soil movement and the potential dangers to the workers caused by the movement, the adjacent heavy equipment, or other potential hazards at the site.
There are multiple ways to shield, including trench boxes, hydraulic shoring, slide rail system, sloping, etc. The choice of which type of shielding to use is contingent on the conditions of the specific job: soil types, the depth, and external pressures or forces that could impact the work. OSHA and other safety organizations mandate that you have sufficient excavation shielding in place to keep your team safe.
Understanding excavation shielding allows construction managers and safety officers to make intelligent decisions about what systems are best for their project. This not only keeps them in compliance with safety requirements but also helps avoid delays, keeps their crew on track, and keeps them from any financial costs associated with an accident.
Excavation Shielding vs Shoring
Although shielding versus shoring both protect employees, they are radically different in design and when they are employed. Understanding the differences are key to picking which method you use on your excavation project.
| Shoring vs Shielding | Shielding | Shoring |
| Primary Function | Protects workers from cave-ins using physical barriers like trench boxes. | Reinforces trench walls to prevent collapse. |
| Best Used For | Projects where workers need to be physically protected from falling debris. | Projects where trench walls need reinforcement. |
| Typical Applications | Shallow excavations with risk of soil collapse. | Deep trenches or areas with unstable soil. |
How to Choose the Right Shielding for Your Excavation Project?
Choosing the right shielding is crucial to ensuring both safety and efficiency in your excavation project. Below are key considerations to help you make the best choice for your site.
Key Considerations
| Factor | Considerations |
| Excavation Depth | For deep trenches, heavier-duty systems like hydraulic shoring or trench boxes are necessary. |
| Soil Type | Loose or sandy soils require more robust systems like hydraulic shoring. |
| Project Scope | Larger projects may require more complex shielding systems like slide rail systems. |
Common Mistakes to Avoid
| Mistake | Why it’s Risky | How to Avoid |
| Not Accounting for Soil Conditions | Failure to adapt shielding based on soil type can lead to collapses. | Always assess soil conditions before choosing shielding. |
| Ignoring Regulations | Not complying with safety standards can result in accidents and fines. | Familiarize yourself with local safety regulations. |
| Underestimating Complexity | Overlooking the complexity of trench depth or soil instability can lead to using inadequate shielding. | Choose the most appropriate system based on project requirements. |
Why is Shielding Excavation Important for Safety?
Choosing the right shielding can mean the difference between safety and someone getting injured or killed in your excavation.
Preventing Soil Collapse
Soil collapse is the number one hazard of any excavation. Shielding excavation gives you a protective shield where the soil does not impact the workers. It is especially important on deep and cave-in hazardous
excavation sites.
Legal Requirements
In many areas, it is not an option to use shielding excavation. You are required by law to use them. Failure to use shielding can lead to fines, shut down your job, or make your insurance company charge you more for insurance.
Best Practices in Shielding Excavation
| Best Practice | Description |
| Proper Installation | Always ensure that shielding equipment is properly installed before beginning any excavation. |
| Regular Inspections | Perform regular checks to ensure that equipment is functioning correctly and free from damage. |
| Training | Provide training for workers on the proper use of shielding equipment to reduce risks. |
What are the Different Types of Shielding Excavation Systems?
Several different systems are used for shielding excavation, and they work best for different conditions and depths. Here are the most common systems in use today.
| Shielding System | Description | Advantages | Disadvantages |
| Trench Boxes | Large, modular boxes placed in trenches to prevent cave-ins. | – Easy to transport and set up. | – Not suitable for very deep trenches. |
| – Cost-effective for short-term projects. | – Limited protection compared to more advanced systems. | ||
| – Provides protection from collapse. | |||
| Hydraulic Shoring | Hydraulic jacks are used to support trench walls by applying pressure. | – Adjustable for different trench widths and depths. | – Higher initial cost. |
| – Provides strong support for deeper or unstable soils. | – Requires regular maintenance to function properly. | ||
| Slide Rail Systems | Steel rails placed vertically along the trench to stabilize walls. | – Ideal for deep excavations. | – Time-consuming setup. |
| – Modular system can be adjusted to fit various trench sizes. | – Expensive compared to simpler systems. | ||
| Shoring with Sloping | Excavation walls are sloped at an angle to prevent collapse. | – Simple and cost-effective for shallow trenches. | – Limited to shallow trenches. |
| – No need for additional materials. | – Not effective in unstable soil conditions or deep trenches. |
No one system is perfect for every project. While one system may work well in a city, another may be better suited for less restrictive rural settings. Each system also has its own specific benefits. It all comes down to the soil and what is the best fit for the job. Consider factors such as soil type, trench depth, and duration of the project.
How Does Shielding Excavation Compare to Shoring?
No one system is perfect for every single job. Typically one will excel. One will excel in the city and another in the middle of nowhere with no restrictions. Each system has its own advantages. It all boils down to the soil and what is the best fit. Consider your soil and what is the best fit, soil type, trench depth, and how long you will be working on your project.
Multi banking is a system where you take two trenchers and bank them both to the middle. Then you put their dirt back into the trench and solidify it. This is a pretty typical configuration in a lot of cities, because they run elevators between trenches all the time for footers. In the suburbs and countryside, you’re probably banking to a dirt pile. What works best for you? Use the soil you have. Use whatever system allows for the appropriate soil type, trench depth, and how long you need to run.
On the other hand, when you’re in a trench with a trench box or an aluminum hydraulic shield, that’s shielding. Shielding is designed to absorb the force of collapsing dirt, as well as keep you from being hit in the head with falling pieces of soil.
| Feature | Shielding Excavation | Shoring |
| Purpose | Protects workers from cave-ins and falling debris. | Provides structural support to prevent trench wall collapse. |
| Best Suited For | Shallow to deep excavations, depending on the system used. | Deeper excavations with unstable soils. |
| System Components | Trench boxes, hydraulic shields, or slide rail systems. | Steel, timber, or aluminum bracing along trench walls. |
| Function | Absorbs the force of soil collapse, shielding workers. | Stabilizes trench walls to prevent soil movement. |
What Factors Influence the Choice of Excavation Shielding?
Several factors play a significant role in determining which shielding system to choose for an excavation project. These include:
Soil Conditions
Soil stability is a crucial factor in the selection.Different locations, different types of soil or different depths may require a selection of GME’s shields or Active facilities’ shoring and shields. Loose, sandy, or wet soils may require a hydraulic shoring system or a slide-rail system. Rocky or compact soils may not require as much support, but they still need to be shielded for the workers.
Excavation Depth and Width
The more dangerous and deeper your excavation the more you have to beef up your shielding systems to prevent a blow out. The bad news is that with deeper excavations comes the scars system and other systems that can withstand the pressure. The good news is that for shallow trenches, a simple trench box may be all that’s required. Also, the wider the trench, the more likely you’re not going to use the same system to shore it up.
Project Duration
Hydraulic shoring systems are for deep installations and are reusable, and the customer gets their money back through the rental process. Slide rail systems are usually purchased and can be used in a variety of ways. Use the right equipment for the task at hand and for future projects. The long view should be a factor in your decision-making process.
Regulatory Requirements
Local and national safety regulations, including OSHA, may dictate what types of shielding are required. This determination is often based on the depth of the cut, characteristics of the soil, and other factors. It’s important to know what is required and to do what you need to do to be compliant with regulations. You don’t want to be fined, and you don’t want anyone to get hurt.
How to Maintain Shielding Systems for Excavation Projects?
Proper maintenance of shielding systems is essential to ensure they remain effective throughout the duration of an excavation project. Here are some key maintenance practices:
Regular Inspections
Inspect the shielding systems before and after each use for any damage or excessive wear. Common problems include rust, cracks, or bending, especially in steel or aluminum systems. Someone trained to inspect and repair trench shields and other protective systems can spot most emergencies before they become critical.
Cleaning and Lubrication
Keep the moving parts of hydraulic shoring or slide rail systems clean and well-lubricated. Grit and debris will interfere with the operation, and a rusted spot can cause a system to jam or to fail completely.
Check for Soil Movement
Monitor the soil at the excavation site. You are looking for any indication that the soil has moved or become more unstable. Sometimes you might need to upgrade the shielding with different units or additional bracing to give you more protection.
Training and Certification
Make sure your employees know how to safely install and maintain the protective system they’re using. This includes understanding the compatibility of the system with the soil being excavated. They need to recognize when the soil conditions don’t match the cave-in principle and need to seek additional shoring or bench the excavation. Make sure your people understand the kit they’re operating and the safety of being inside a hole.
Applications of Shielding Excavation
Shielding excavation is a critical safety practice in several industries involved with digging or excavation of any kind. It keeps the workers safe from the risks of trench cave-in, while at the same time allows the excavation to take place in a safe manner. Here are several different applications of shielding excavation types within different industries.
Construction Sites
In the construction industry, you use shielding excavation when you are digging large scale for foundations, utilities, or whatever reason you need a big trench in the ground. You use trench boxes or hydraulic shoring
to make sure the walls of the trench don’t cave in on the workers inside. Using a properly shielded excavation means you don’t have a sudden collapse that can kill somebody, and it allows for a safe work environment
for the life of the project.
Urban Excavations
In urban excavation, you are close to a building, or on a street, or by a highway, and you need to dig. Shielding excavation plays a vital role in these types of locations. The reason it’s so important in this case is because if you have a trench cave in, a building, the street, or utility could be damaged. By using trench shields, you are protecting the workers from a cave-in, and at the same time you’re enabling the structure of the building, highway, or utilities to be protected as well.
Underground Work
Deep underground projects like tunneling or mining require shielding excavation for worker safety. These locations have a higher risk of cave-ins or accidents due to the weight of the overlying earth. Shielding systems, such as slide rail systems, provide extra support to prevent the tunnel walls from collapsing so workers can do their job safely underground.
Common Challenges in Shielding Excavation and How to Overcome Them
Shielding excavation systems are essential for safety, but there are challenges in applying them that need to be managed effectively to maintain a safe work environment.
Difficult Soil Conditions
The type of soil encountered during excavation greatly impacts the choice of shielding system. Some soil types are unstable or prone to shifting, which could increase the risk of collapse if not properly supported. The table below outlines how the different soil conditions drive the choice of shielding system:
| Soil Condition | Recommended Shielding |
| Loose or Sandy Soil | Hydraulic shoring or trench boxes for additional support. |
| Rocky or Dense Soil | Slide rail systems or reinforced trench boxes for added durability. |
| Soft Clay or Wet Soil | Trench boxes or hydraulic systems that can withstand high water pressures. |
| Gravel or Compacted Soil | Slide rail or trench boxes with extra stability to handle shifting material. |
Managing Depth and Width of Excavation
Excavation projects vary in depth and width, so the shielding system must be flexible to accommodate those changes. As the trench becomes deeper or wider, the potential for collapse increases, and you need stronger, more specialized shielding equipment to prevent a collapse. The table below shows the recommended shielding systems based on the depth of the excavation:
| Excavation Depth | Recommended Shielding |
| Shallow (up to 10 feet) | Trench boxes or simple hydraulic shoring systems. |
| Medium (10-20 feet) | Hydraulic shoring or slide rail systems for added stability. |
| Deep (above 20 feet) | Slide rail systems or specialized shielding solutions for maximum safety. |
Proper Shielding Setup
The setup of the shielding systems is critical to the safety of the excavation site. Improper installation can lead to a failure of the equipment or a trench collapse, which would pose significant danger to workers on the scene. Each shielding system needs to be set up per the local regulations and standards and with the proper tools and techniques needed for the job at hand. This installation process should always be performed by professionals who are experts in excavation and the proper safety measures to install and use shielding equipment.
Conclusion
In conclusion, shielding excavation is critical in safely working in and around excavations. It keeps your workers safe, prevents accidents, and maintains the structural integrity of the excavation. By understanding the different methods used to shield and when to use them, you can better make choices that are safe and cost-effective for your project.Our company has 15 years of experience in selling second-hand construction machinery and is proficient in the problems you encounter in all types of excavation. If you buy our second-hand excavator, I will help you solve all problems that arise during use. Please contact me.
